Aluminium Hanging Z Section

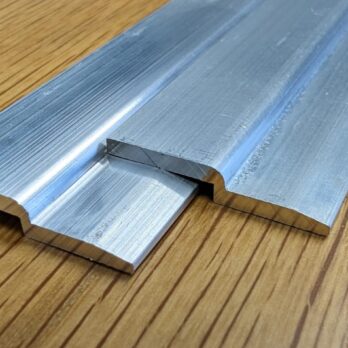

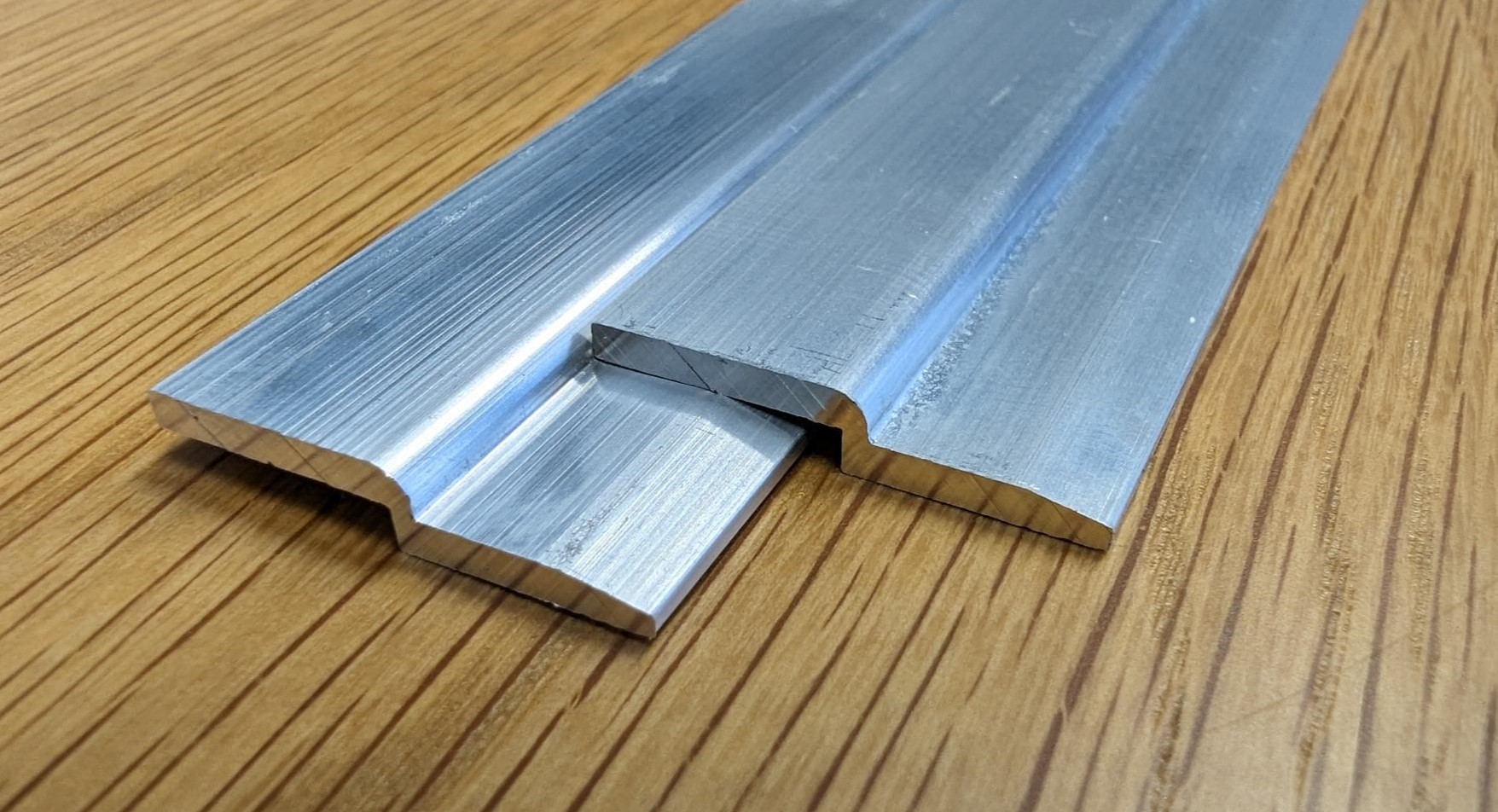

This Aluminium Z-shaped section offers an interlocking hook solution suitable for multiple sectors; two Z sections can fit together for a secure and long-lasting fixture.

This section is made from 6063T6 alloy and has a good surface finish suitable for anodising and excellent corrosion resistance. We can supply this Z section in our standard 4000mm lengths or cut-to-size and pre-drilled if required at extra cost.

This product is also known as Boardhook zed or Split wall batten

Common use for this product is;

  • Picture or panel hanging
  • POS
  • Displays
  • Galleries
  • Signs

£7.00 per 4m length 1-24 lengths
£5.50 per 4m length 25-49 lengths
Special offer: *£3.99 per 4m length – Only available on orders of 50 lengths or more*

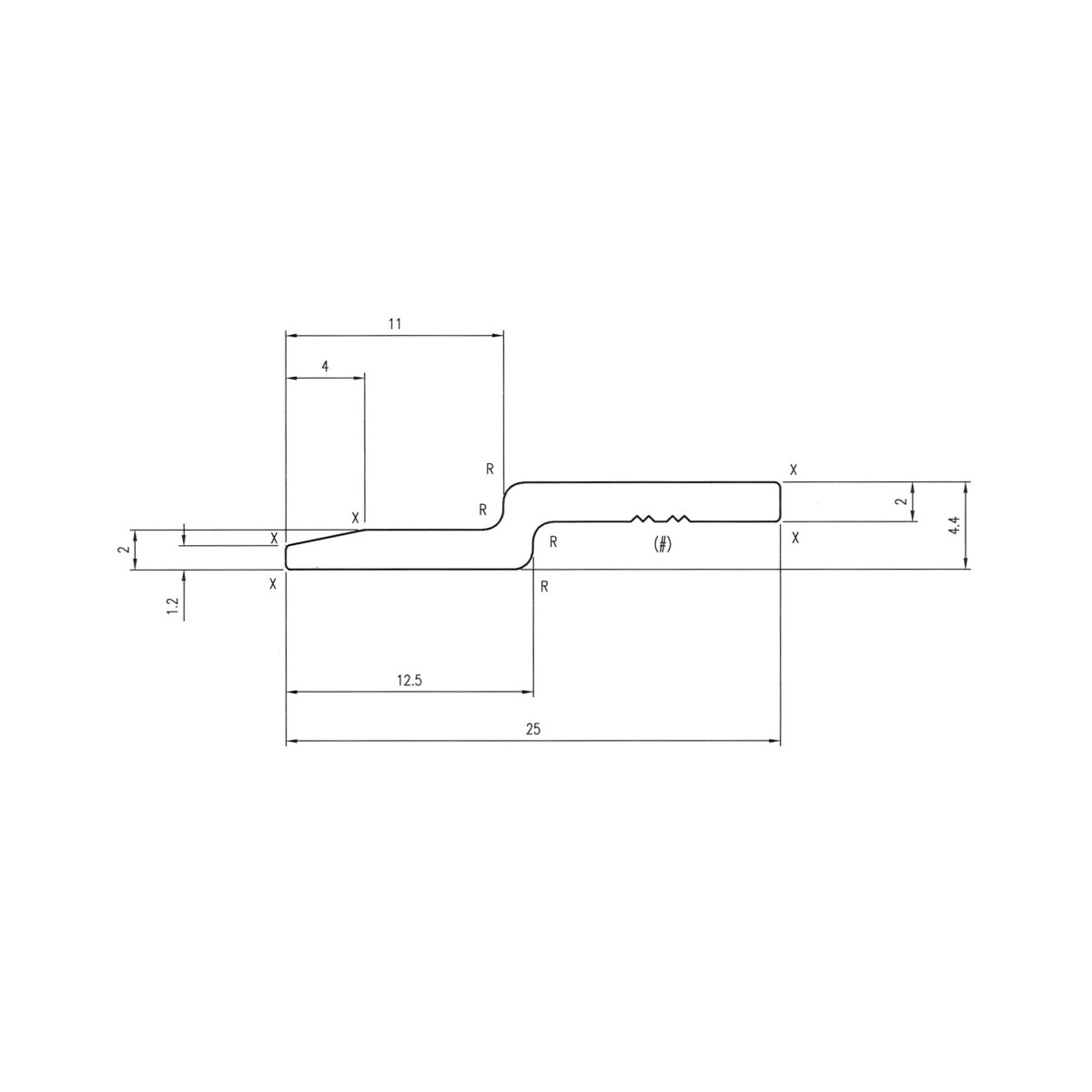

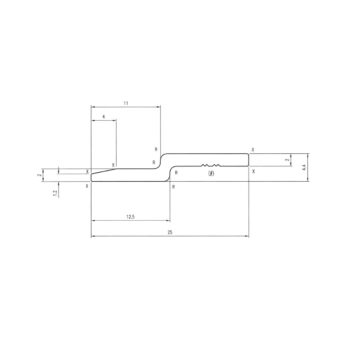

Technical information

Catalogue No: ZED015/1
Metric: 11 x 4.4 x 11mm
Length: 4000mm
Alloy: 6063T6
Thickness: 2mm
Weight Per Metre: 0.14 kg
Finish: Mill Finish
Special Offer: *£3.99 per 4M Length - Only Available on Orders on 50 lengths or more*
